Please call for more information, product pricing and availability
Wall mounted breathalyser with facial recognition for user verification during breath alcohol tests together with temperature screening. Sync data via Andalink.
Keep track of workers’ breath alcohol test data

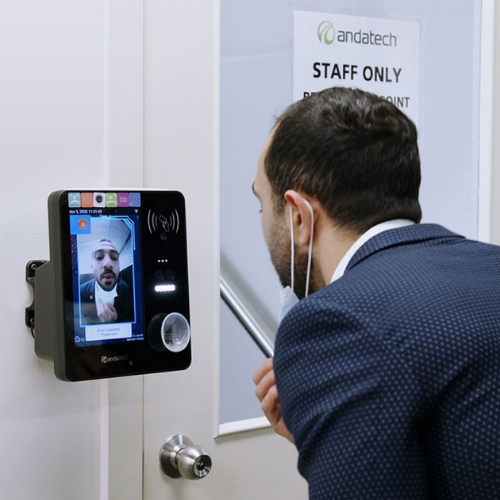

Wall mounted breathalyser with temperature screening and facial recognition technology for breath alcohol testing on-site and in workplaces. Data synced with Andalink.
Accurate & reliable
Accuracy of ±0.005 %BAC at 0.100 %BAC.

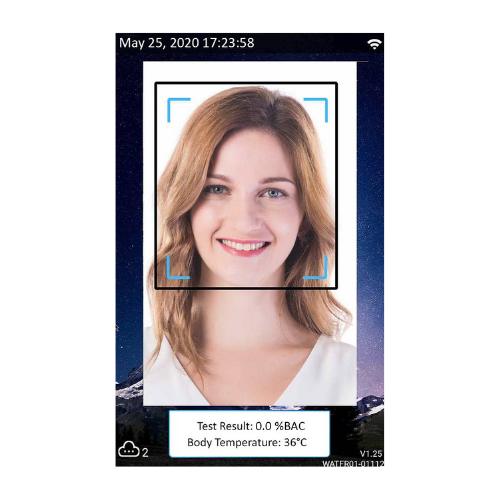

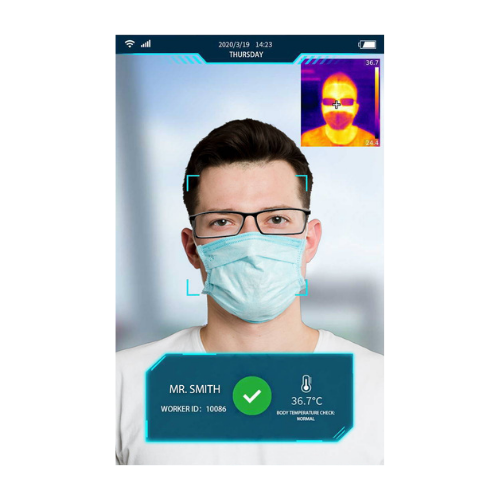

Instant user verification
Facial recognition verification before, during, and after each breath alcohol test to prevent fraud.
Fast passive & specific tests
Response time of 5 seconds and recovery time of <30 seconds before the next test.

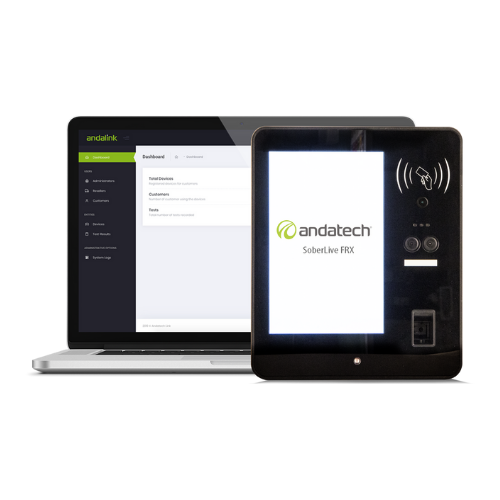

Centralised data in one place
Secure breath alcohol test data management through Andalink for multiple breathalysers.
Automatic alert & reports
Email notification for regular reporting and alerts for test results over a set limit.
No calibration downtime
Replaceable sensor allows the breathalyser to function when one is sent for calibration.
Technical Specification
Sensor type Replaceable fuel cell sensor
Accuracy ±0.005%BAC at 0.100%BAC
Response time 5 seconds
Recovery time 30 seconds after a positive test
Calibration frequency Unlimited tests, every 12 months
Mouthpieces Passive testing Replaceable sampling cup
Specific testing Straw used with straw adaptor
Compatible software Andalink
Built-in memory 10,000 registered faces, 20,000 test results
Display LCD screen
Camera 1 megapixels
Infrared temperature sensor Accuracy within +/- 0.3°C - Less than 1 second response rate
Internet connection Ethernet, Wifi, 4G (optional)
Power supply AC: 100-240V 50-60Hz DC: 12V 3A
Weight 1.243g
Dimensions H: 22cm, W: 20cm, D: 8.8cm
Warranty 1 year, extendable up to 5 years
Included
Andatech Soberlive FRX, power cable, RS232 cable, user manual, 2 straw adaptors, 5 sampling cups, 2 keys (unlock to connect to bracket), 2 screws, 2 wall plugs.
